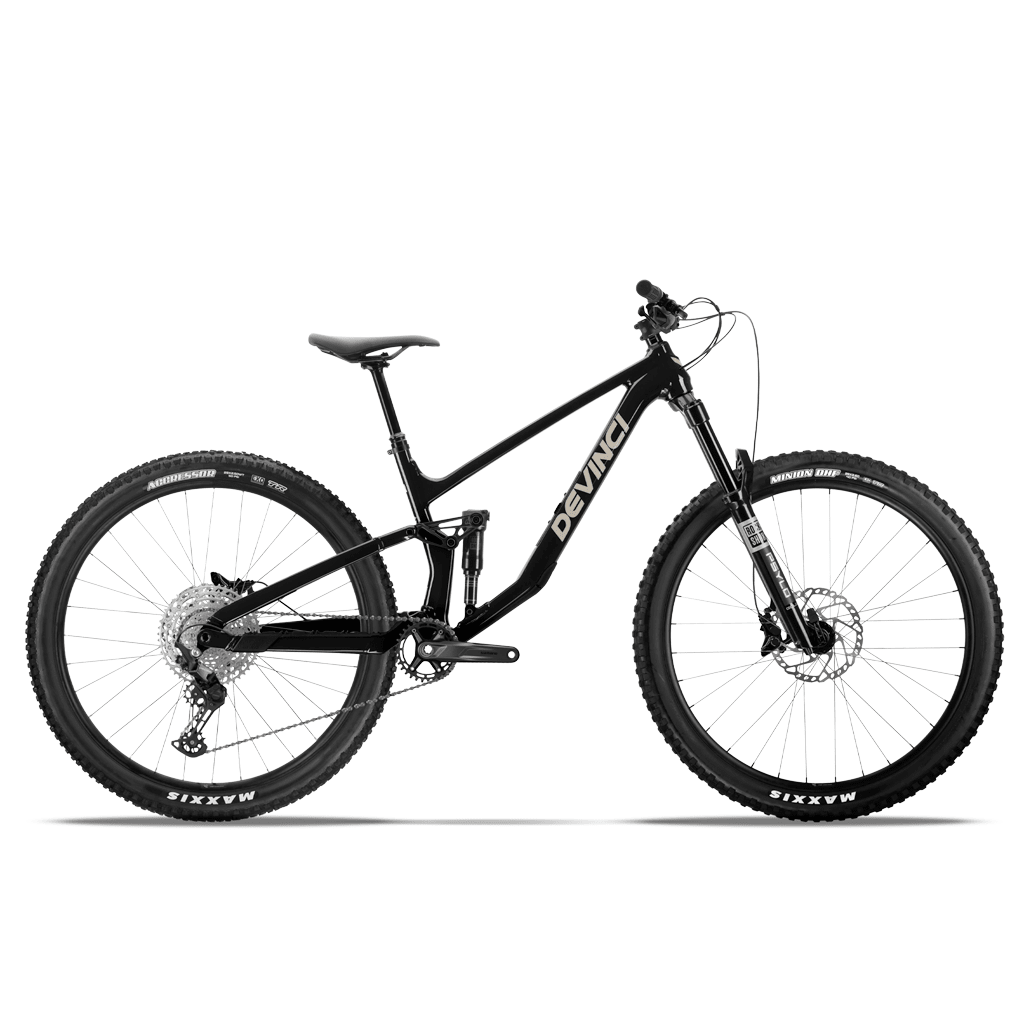

The Devinci Troy ST AL Deore uses a Split Pivot frame with 130 mm of rear travel and a 140 mm RockShox Psylo Silver RC fork.
It features size-specific chainstays and integrated downtube storage. The platform uses 29-inch wheels in sizes M–XL and 27.5-inch wheels in XS–S.
Manufacturer lifetime warranty.
Technical Specifications
Manufacturing
| Component |
Specification |
| Headset |
FSA Orbit | 1.5 | Zero Stack |
| Seat clamp |
Alloy CNC | 34.9mm |
| Component |
Specification |
| Suspension fork |
RockShox Psylo Silver RC | 140mm | 44Offset | 1 Token |
| Rear shock |
RockShox Deluxe Select 185x47.5 Trunnion |
| Component |
Specification |
| Handlebar |
V2 Pro | B:35mm | R:30mm | W:800mm |
| Saddle |
Devinci |
| Seatpost |
TranzX Dropper | 31.6mm |
| Seatpost lever |
TranzX |
| Grips |
Devinci | w/lock-on |
| Component |
Specification |
| Front brake |
Shimano Deore M4100/MT410 | 2 Pistons |
| Rear brake |
Shimano Deore M4100/MT410 | 2 Pistons |
| Front rotor |
Shimano RT66 | 203mm |
| Rear rotor |
Shimano RT66 | 203mm |
| Component |
Specification |
| Rear derailleur |
Shimano Deore M6100 | 12s |
| Rear shifter |
Shimano Deore M6100 | 12s | I-spec EV |
| Crankset |
Shimano MT5121 | 32T | 170mm |
| Bottom bracket |
Shimano BB MT501 | BSA | 68/73mm |
| Cassette |
Shimano Deore M6100 | 12s | 10-51T | Microspline |
| Chain |
KMC X12 | 12s |
| Component |
Specification |
| Front rim |
V2 Comp 29 | 29mm inner | TR |
| Front hub |
Formula DC-611 | Sealed | 6bolts | TA 15x110mm |
| Rear hub |
Formula MST-148 | Sealed | 6bolts | TA12x148mm | Microspline |
| Rear rim |
V2 Comp 29 | 29mm inner | TR |
| Spokes |
Sapim Stainless 14G w/Nylok |
| Front tire |
Maxxis Minion DHF | 29x2.5WT | 3C | Exo | TR | MaxTerra |
| Rear tire |
Maxxis Aggressor | 29x2.5 | EXO | TR | Dual Compound |
Weight
| Component |
Specification |
| Weight |
16.85 kg / 37.15 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo. |
FRAME TECH SPECS
| Component |
Specification |
| Rear travel |
130 mm |
| Front travel |
140 mm |
| Rear tire clearance |
27,5'' x 2.6” / 29'' x 2.5'' |
| Rear hub spacing |
12 x 148 Boost |
| Max & min chainring clearance |
Max. 34T | Min. 28T |
| Chainline |
55 mm |
| Derailleur hanger |
UDH™ |
| Caliper mount |
200 mm Post Mount |
| Seat tube diameter |
31.6 mm ID / 34.9 mm OD |
| Seatpost max insertion |
XS → 235 mm / S → 265 mm / M → 280 mm / L → 305 mm / XL → 330 mm |
| Headset |
Top ZS44 | Bottom ZS56 |
| Cable routing |
Internal |
| Rear shock dimension |
Trunnion | 185 x 47.5 mm |
| Rear shock hardware |
Top: NA | Bottom: 40 x 10 mm |
| Linkage bearing type |
Enduro™ double-lip sealed |
| Fork dimensions (Axle-to-Crown measurement/Offset) |
551 mm / 44 mm (M, L, XL)
533 mm / 37 mm (XS, S) |
| Chain guide mount |
ISCG 05 – 3-Bolt |
| Frame material |
Aluminum 6061-T6 | Optimum G04 |
Assembly and shipping
Assembled by our certified mechanics, in our workshop. Online orders ship 90% assembled.
