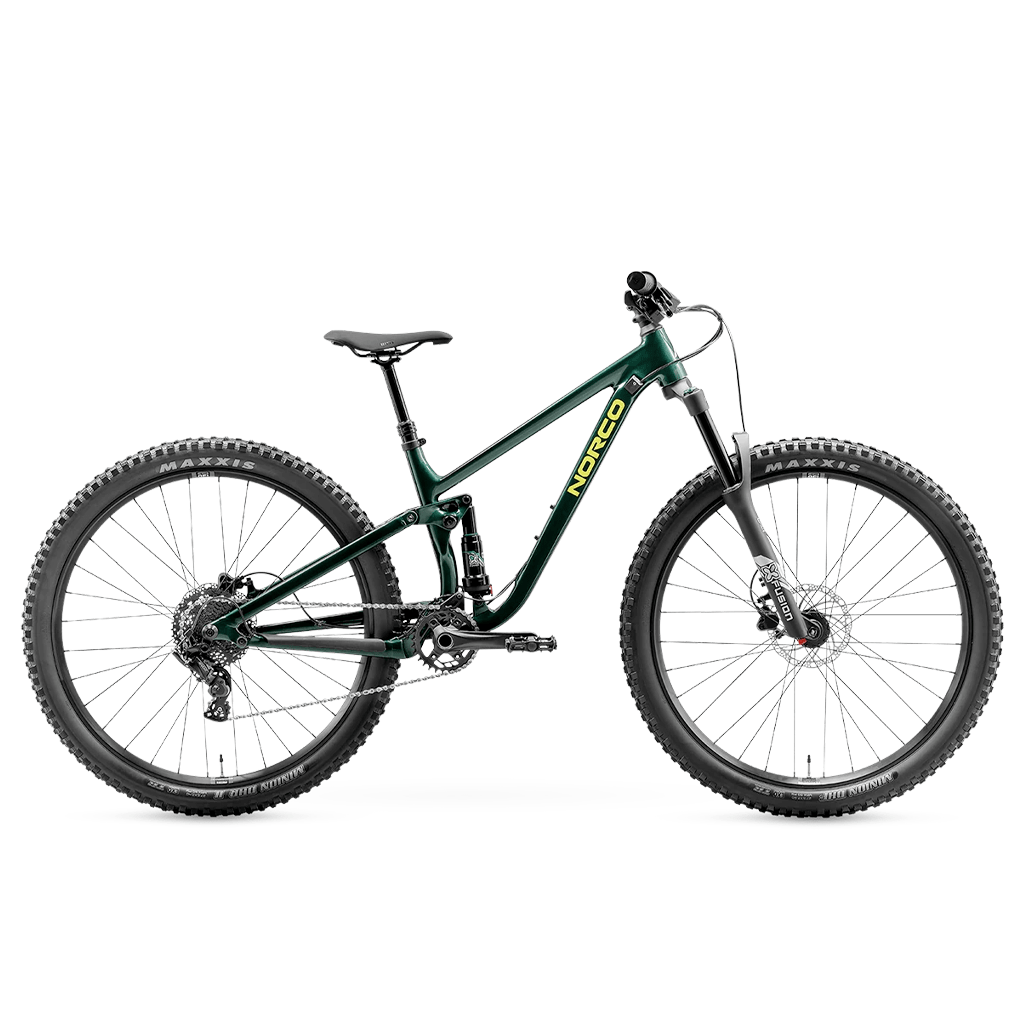

The Norco Fluid FS 27.5 combines a double-butted 6061 aluminum frame with 120 mm of rear travel and a 130 mm X-Fusion RC32 Air fork.
This build uses 27.5-inch wheels and a microSHIFT Advent 9-speed drivetrain.
Technical specifications
Frame
| Component |
Specification |
| Frame |
6061 Alloy, 120mm Travel, UDH, Hangerless Interface Compatible |
Suspension
| Component |
Specification |
| Fork |
X-Fusion RC32 Air, 130mm, 46mm Offset, 15x110mm Boost |
| Rear Shock |
X-Fusion 02 Pro R, 190x42.5mm Standard |
Cockpit
| Component |
Specification |
| Handlebar |
Norco 6061 Alloy DB , 750mm, 20mm rise |
| Stem |
Norco 6061, 35mm Length, 31.8mm Clamp |
| Seatpost |
TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune |
| Headset |
Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40) |
| Saddle |
WTB Solano Med, 142x240 mm, Steel Rails |
| Grips |
Norco Youth Lockon, 115mm Length |
| Seatpost Clamp |
Norco Alloy Nutted Clamp, 34.9mm ID |
Drivetrain
| Component |
Specification |
| Rear Shifter |
microSHIFT Advent, 9spd |
| Rear Derailleur |
microSHIFT Advent, 9spd, Short Cage Clutch |
| Crankset |
Prowheel Junior Alloy, 30T, 155mm |
| Bottom Bracket |
Prowheel Cartridge BB |
| Chain |
KMC X9, 9spd |
Brakes
| Component |
Specification |
| Front Brake |
Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade |
| Front Brake Rotor |
Tektro TR160-22, 160mm, 6-bolt |
| Rear Brake |
Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade |
| Rear Brake Rotor |
Tektro TR160-22, 160mm, 6-bolt |
| Brake Levers |
Tektro HD-J285 |
Wheels
| Component |
Specification |
| Front Hub |
Formula DC-511, 15x110mm Boost, 32h, 6-bolt |
| Rear Hub |
Formula DC-3248,12x148mm Boost, HG, 32h, 6-bolt |
| Rims |
WTB ST, 27mm ID, 32H |
| Front Tire |
Maxxis Minion DHF, EXO, 27.5"x2.5", Folding |
| Rear Tire |
Maxxis Minion DHR II, EXO, 27.5" x 2.4", Folding |
Other specifications
| Component |
Specification |
| Cassette |
microSHIFT Advent, 11-38T, 9spd |
Manufacturer resources
Specifications are subject to change without notice and may differ from the photos.
Assembly and shipping
Assembled by our certified mechanics, in our workshop. Online orders ship 90% assembled.
