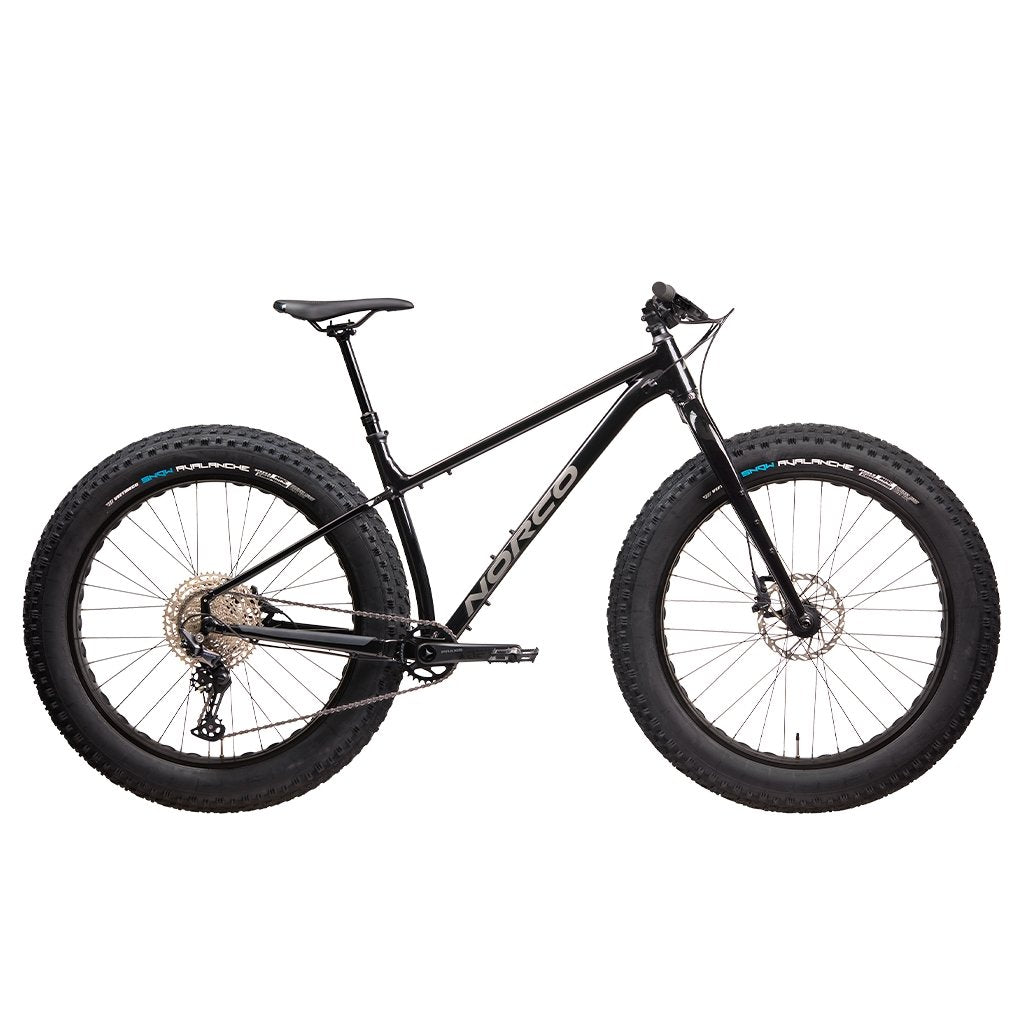

The Norco Bigfoot 2 2022 is a rigid fatbike with a butted X6 aluminum frame and 27.5×4.5-inch Vee Snow Avalanche tires.
The build includes Shimano Deore 12-speed shifting, SRAM Level brakes and a TranzX dropper post with size-specific travel.
Norco No Other Way limited lifetime warranty.
Technical specifications
Frame
| Component |
Specification |
| Frame |
Butted X6 Aluminum |
Suspension
| Component |
Specification |
| Fork |
6061 Aluminum |
Cockpit
| Component |
Specification |
| Headset |
Sealed Bearing, Tapered |
| Headset spacer |
2x10mm - Black |
| Grips |
VP Lock-On |
| Handlebar |
Butted 6061 Alloy 760mm, 15mm Rise |
| Stem |
Alloy 50mm Length, 31.8mm Clamp |
| Seatpost |
TranzX YSP18 Dropper, 31.6mm, 130mm (S, M), 150mm (L, XL) |
| Saddle |
Norco XC |
| Pedals |
VP Nylon Flat |
| Seatpost Clamp |
Alloy Nutted |
Drivetrain
| Component |
Specification |
| Rear shifter |
Shimano Deore SL-M6100-R |
| Rear derailleur |
Shimano Deore RD-M6100 |
| Chain |
Shimano Deore CN-M6100 |
| Crankset |
Praxis Cadet M30, 32T, 170mm (S), 175mm (M, L, XL) |
| Bottom Bracket |
Praxis M30, BSA Threaded |
Brakes
| Component |
Specification |
| Front brake |
SRAM Level, Organic Pads |
| Front brake rotor |
AVID G2, 180mm |
| Rear brake |
SRAM Level, Organic Pads |
| Rear brake rotor |
AVID G2, 160mm |
| Brake levers |
SRAM Level |
Wheels
| Component |
Specification |
| Front hub |
Sealed Bearing, 15x150mm, 6Bolt |
| Rear hub |
Bear Pawls Seald Bearing, 12x197mm, Micro Spline, 6 bolt |
| Rims |
Alloy TR, 27.5", 32H |
| Spokes/nipples |
Stainless 14G, Black |
| Front tire |
Vee Snow Avalanche TLR 4.5", 120 TPI, Studdable |
| Rear tire |
Vee Snow Avalanche TLR 4.5", 120 TPI, Studdable |
| Rear Hub Skewer |
197mm x 12mm TA |
| Front Hub Skewer |
150mm x 15mm TA |
Other specifications
| Component |
Specification |
| Cassette |
Shimano Deore CS-M6100-12, 10/51T, 12-speed |
Specifications are subject to change without notice and may differ from the photos.
Assembly and shipping
Assembled by our certified mechanics, in our workshop. Online orders ship 90% assembled.
